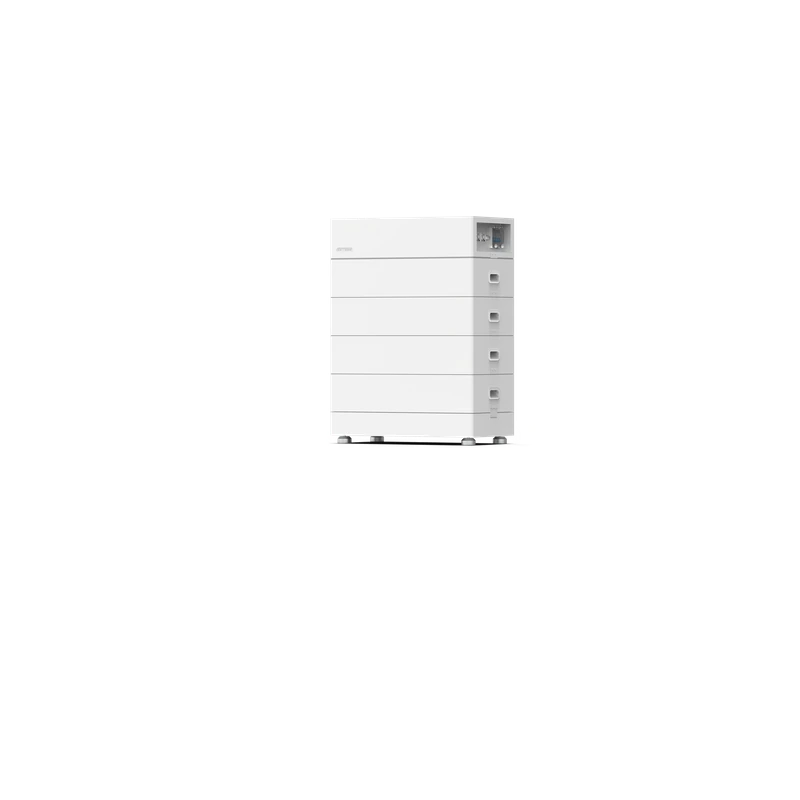

Low-Voltage Stackable Residential Energy Storage System

Certified to UN38.3, CE, and IEC 62619. IP65 for outdoor use, automatic voltage matching, wireless connection, easy installation, and space-saving design.

This low-voltage modular system is available from 5.12 kWh to 30.6 kWh and supports off-grid and hybrid configurations.

Description

Model	LV M05	LV M10	LV M15	LV M20	LV M25	LV M30
Module Quantity	1	2	3	4	5	6
Nominal Capacity	100Ah	200Ah	300Ah	400Ah	500Ah	600Ah
Nominal Battery Energy	5.12kWh	10.2kWh	15.3kWh	20.4kWh	25.5kWh	30.6kWh
Max. Continuous Discharge Power	5kW	10kW	10kW	10kW	10kW	10kW
Max. Continuous Charge Power	5kW	10kW	10kW	10kW	10kW	10kW
Dimensions (mm)	700×370×441	700×370×609	700×370×777	700×370×945	700×370×1113	700×370×1281
Weight	73.7kg	123.2kg	172.7kg	222.2kg	271.7kg	321.2kg

Parameter	Specification
Operating Temperature	0°C to 50°C (Charging); -20°C to 55°C (Discharging)
Warranty Documentation Provided	Yes
IP Rating	IP65
Color	White
Protection Functions	Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit
Advantages	Suitable for Off-Grid and Hybrid Systems; Compact Design; Modular Expansion
Battery Module Type	Low Voltage
Connection Type	Parallel Connection
Certifications	UN / CE / IEC
Compatible Inverters	GoodWe / Deye / Megarevo / Growatt / LuxPower / TBB / Victron / SRNE / Must / Senergy / Voltronic / Aotai / Sofar / SMA, etc.
Communication Protocol	RS485 / CAN

OUR PROCESS

From Requirement to Reliable Delivery

We manage every stage of your battery project—from technical evaluation and product design to testing, mass production, and global shipment.

Requirements Analysis

Match application needs and budget, and deliver a customized requirements report.

Solution Design

Balance performance, safety, and cost while meeting local grid standards.

Sample Production & Testing

Conduct functional and compatibility testing to reduce mass-production risks.

Delivery & Support

Compliant packaging, shipment tracking, and 24/7 technical support.

Testing & Quality Inspection

Perform three full charge-discharge cycles to identify early-stage failures.

Mass Production

Maintain high standards and efficient production to ensure capacity and consistency.

OUR CERTIFICATION

Certification

With extensive experience in LiFePO4 batteries and energy storage systems, we deliver reliable solutions backed by strict quality control, scalable production capacity, flexible customization, and responsive technical support.
